Jitterbug GL
Jitterbug GL is a GLUT based viewer which displays models based on
R. Buckminster Fuller's
jitterbug transformation.
Usage Guide
Download the program, and follow the
setup instructions for your system.
Run the program. A window will appear displaying a basic ball
based jitterbug.
Rotate the model by holding down the left mouse button and
moving the mouse.
The right mouse button pops up a menu with all the options. The
options all have a letter and can also be changed using the
keyboard.
Options
- Change Model 'M' cycle through model types
- balls
- equilateral triangles
- other triangles
- all triangles
- wireframe
- Change Cycle 'C' cycle through jitterbug cycle types
- full rotation
- alternating between left and right octahedron stages
- rolling between left and right octahedron stages
- alternating between left and right icosahedron stages
- Lattice Size '1-9' create a cubic lattice with 1-9 jiitterbugs
on each side
- Fix Triangle On/Off 'T' stop an opposing pair of triangles
from rotating
- Lattice Reversal On/Off 'R' with a full rotation cycle
the connections between neighbouring jitterbugs are maintained
throughout the cycle, causing the lattice to reverse.
- Show Edges On/Off 'E' toggle display of edge rods. Larger
lattices may look and run better with edges hidden
- Faster 'F' increase the animation speed
- Slower 'S' decrease the animation speed
- Pause On/Off 'P' toggle between paused and running
- Quit 'Q' quit the program

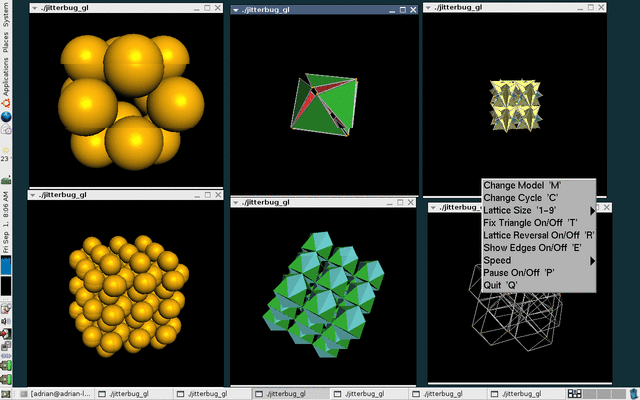

Screen shot showing several instances of the program running (the
models are actively jitterbugging)
- Windows
- Download the windows executable
jitterbug_gl.exe,
and a copy of the GLUT library
OpenGLUT.dll.
Save them to the same directory then run the executable. It
doesn't take any arguments so you could double click on it.
- Mac OS X 10.4
- Mac executables kindly provided by Phil Earnhardt. Download the Mac
executable
jitterbug_gl_ppc
(or for Intel based Macs
jitterbug_gl_i386,
which should run faster). Change the permissions of the
file to make it executable, using a command like
chmod 0555 jitterbug_gl_ppc
- Linux / Unix
- People with unix-like systems should be able to build from the
source (needs OpenGL and GLUT libraries and headers installed).
Download the source file
jitterbug_gl.c, and build
with a command like
gcc -W -Wall -o jitterbug_gl jitterbug_gl.c -lm -lGL -lGLU -lglut
