Align with poly thumbnails
tree :: Antiprism Examples and Visual Reference > Topics and Overviews > Topics: Symmetry > Align with poly Image List
Description : Aligning one polyhedron with another is a two stage process. The polyhedron to be aligned is aligned with a standard symmetry using the -y option. The standard symmetry is then aligned with a subgroup of the same type in the fixed polyhedron using the -Y option.

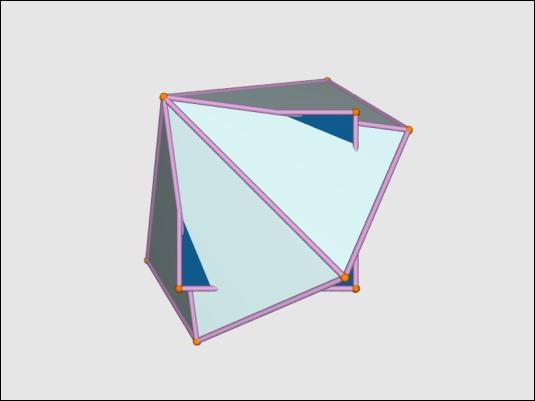

In this case, a C3v subgroup of a hexagonal pyramid is aligned with a C3v subgroup of a cube.

View this model with the command

polygon pyr 6 | off_trans -y C3v -Y cube,C3v  | antiview - cube

  previous     Medium    Large    next
align_poly1.jpg  10KB JPEG image, 535 x 401 pixels
