Mirror 3 Pt thumbnails
tree :: Antiprism Examples and Visual Reference > Program Examples > Programs: off_trans > Mirror 3 Pt Image List

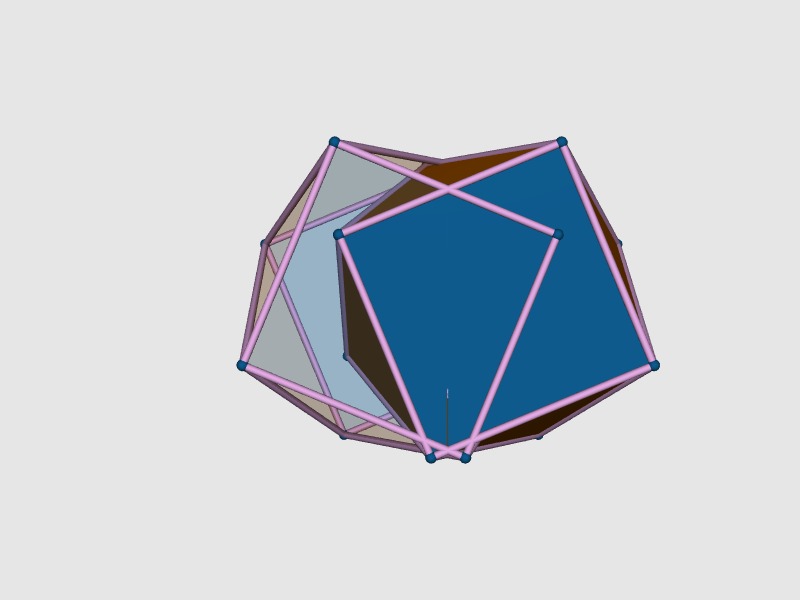

Description : The -M option specifies a reflection in a plane passing through the origin. To reflect in a plane that doesn't pass through the origin: translate by the negative of the coordinates of a point on the plane, then mirror in the required direction, then translate by the coordinates of the point. In this example the model is reflected in a plane through the point (0.2,0,0).

View this model with the command

off_color -r A0.2,f ant4 > orig.off
off_trans -T -0.2,0,0 -M 1,0,0.0001 -T 0.2,0,0 ant4 | antiview -C 0,0,0 - orig.off

  previous     Medium    Large    next
mir_pt_3_1.jpg  29KB JPEG image, 800 x 600 pixels
