Align F thumbnails
tree :: Antiprism Examples and Visual Reference > Program Examples > Programs: off_align > Align F Image List

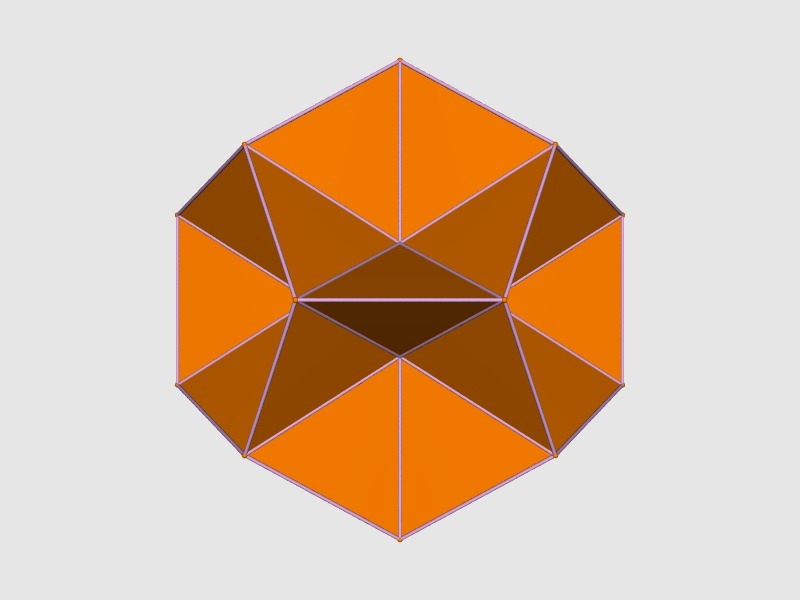

Description : The -F option aligns a face on the brick with a face on the base and then uses it to augment or excavate the base model (the polyhedra are joined and the bonding faces removed) It may be possible to align the face in various ways, the third number selects from these possibilities, with the first possibility being 0. In this example the base polygon of a pentagonal pyramid is aligned with a face of a dodecahedron. An alignment number is chosen that causes the pyramid to lie inside the dodecahedron, producing an excavation. The bonding operation is repeated with the symmetry of the base model be specifying -y full.

View this model with the command

off_align -F pyr5,0,0,5 -y full dodecahedron  | antiview

  previous     Medium    Large    next
align_F_2.jpg  33KB JPEG image, 800 x 600 pixels
