Pre-triangulate thumbnails
tree :: Antiprism Examples and Visual Reference > Program Examples > Programs: geodesic > Pre-triangulate Image List

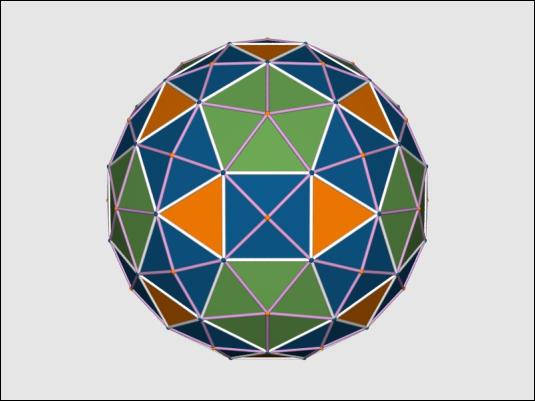

Description : The geodesic division is only carried out on polyhedra whose faces are all triangles. When a polyhedron has faces with more than three sides these are first converted to triangles by attaching the edges of the face to its centre. The following example is a 'one frequency' rhombicosidodecahedron. The square and pentagonal faces have been converted to triangles. This would be the base model used for any higher frequency subdivisions.

View this model with the command

off_color -e white u_rhombicosi | geodesic | antiview -v 0.015

  previous     Medium    Large    next
tri_first.jpg  22KB JPEG image, 535 x 401 pixels
